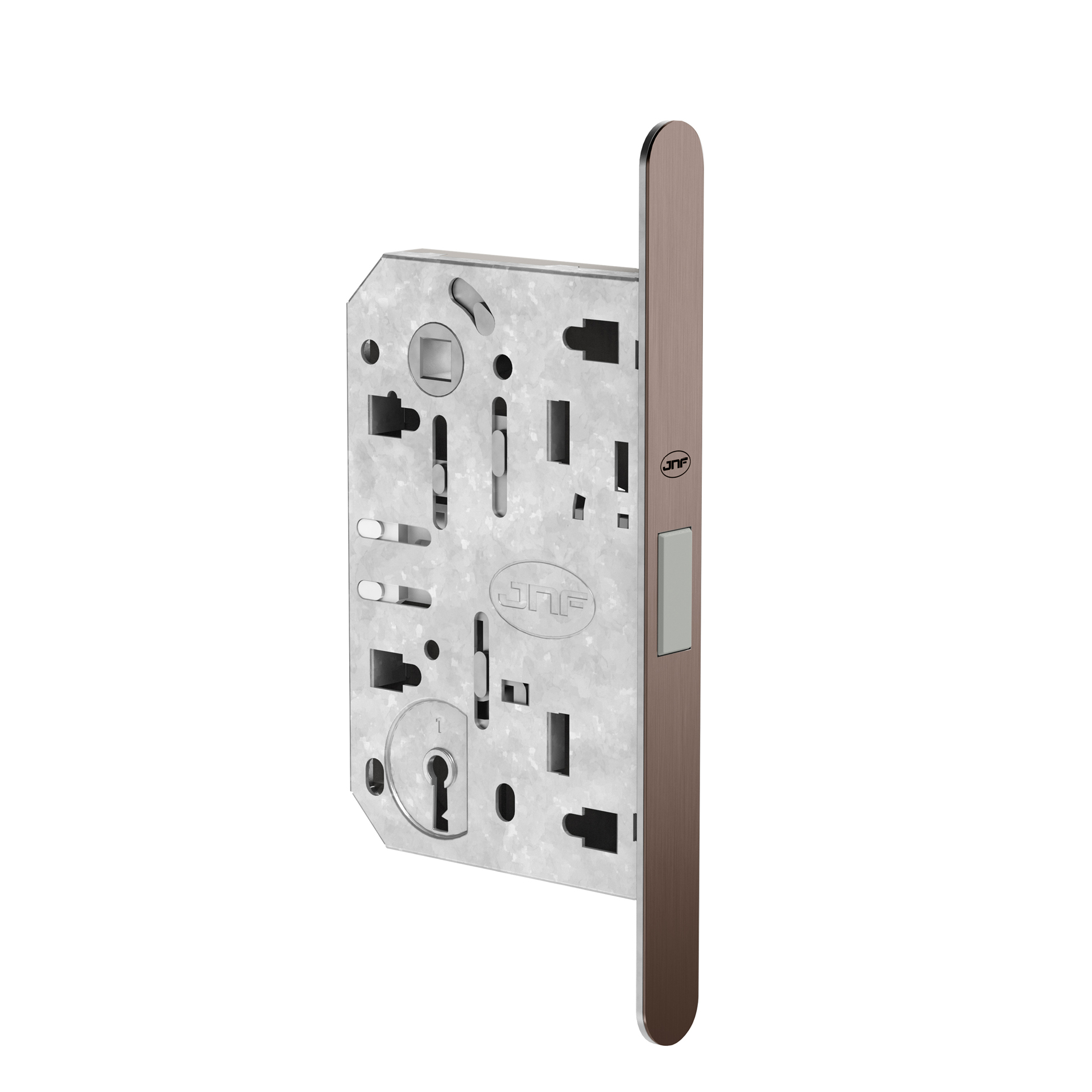

Magnetic door lock IN.20.877.50.TCH PVD Titanium Chocolate
Magnetic door lock IN.20.877.50.TCH PVD Titanium Chocolate
IN.20.877.50.TCH

Magnetic door lock

Magnetic mortise door lock with normal key with hidden fixing screws. Key with 6 combinations.

The same cut out in the door allows the application of 3 models of locks with different functions.
The machining of the door is symmetrical, which makes it reversible

Magnetic strike plate, reversible and adjustable by position.
The gap of the strike plate to the magnetic bolt is adjustable in +1mm / -1mm by the rotation of 180º

1. 8x8 spindle with path limitation
2. Handle fixing holes
3. Closed lock case
4. 18mm front plate
5. Magnetic latch
6. Reversible and adjustable strike plate

Measure
Material: EN 1.4301 (AISI 304)

Tem de iniciar sessão para poder adicionar ao seu projeto.

Login Registar
Brand JNF Architectural Hardware
Finishing PVD Titanium Chocolate
Function Magnetic
Material EN 1.4301 (AISI 304)
Measure 50mm
Shape Rounded corners
Grade 2 performance: Built for domestic andprivate environments.

Centered magnetic latch: Provides precise alignment for smooth, effortless operation and enhanced durability.

Invisible screw design: A clean, seamless look for modern interiors and minimalist aesthetics.

Comprehensive functionality: Available in all key configurations, including cylinder, bathroom, passage, and standard key systems.

Premium finishes: PVD titanium coating options offer a wide range of elegant and durable finishes to suit any design.

Discrete and powerful: Combines subtle design with uncompromising strength for a lock that performs without drawing attention.
