IN.05.216.HO

Hydraulic pivot with hold open 90º

Name: Hydraulic pivot with hold open 90º IN.05.216.HO Satin
Brand: JNF
SKU: IN.05.216.HO
Availability: InStock

Hydraulic pivoting system for doors up to 500kg.

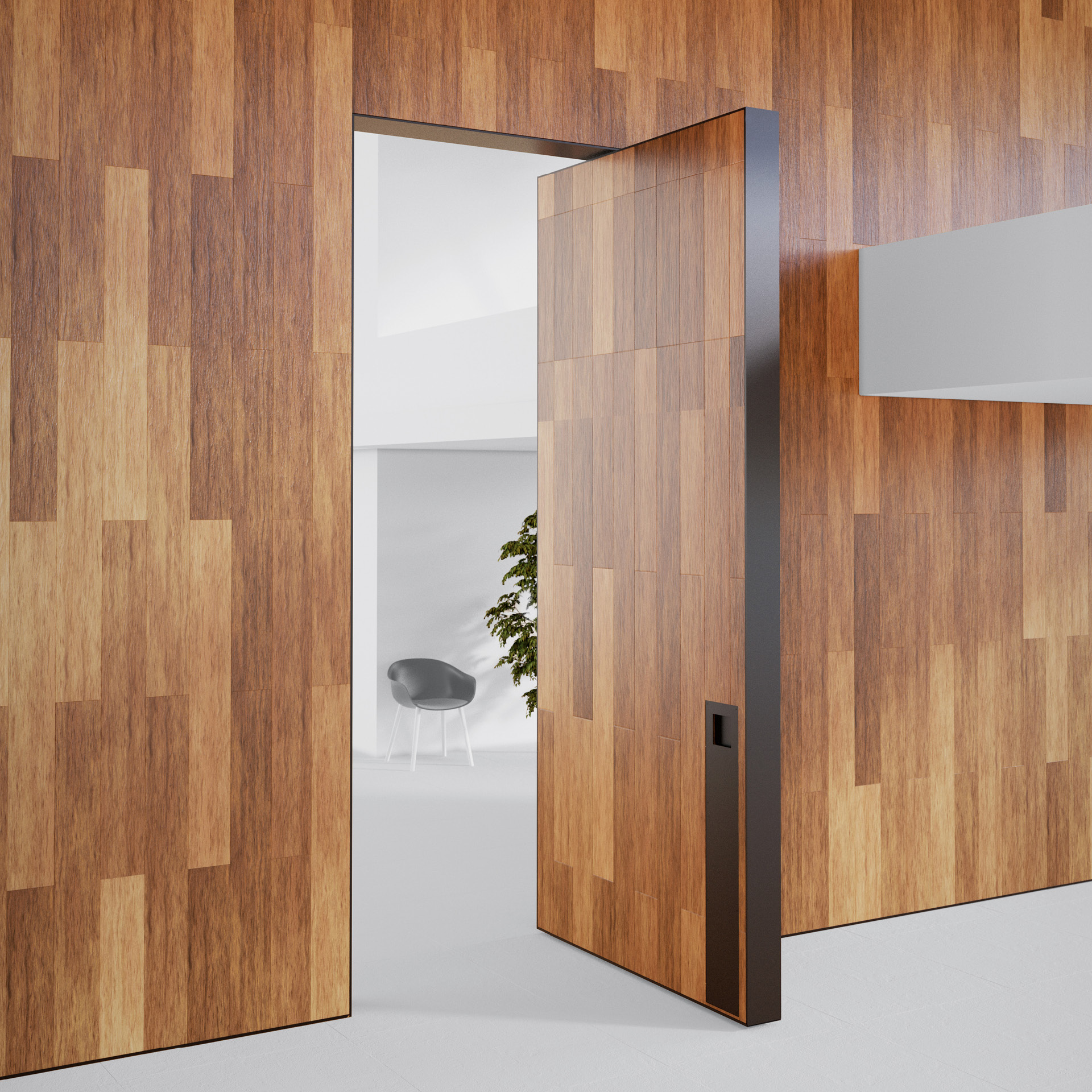

The doors can be single or double action, with thickness from 60mm. The system is hidden inside the door, with only a small base on the floor, with bidirectional regulation and a rotation point on the roof or upper frame of the door with built-in bearing.

Material: EN 1.4301 (AISI 304)

Add to project

You must log in to be able to add to your project.

Technical information
Additional information

Finishing	Satin
Material	EN 1.4301 (AISI 304)
Weight	500KG (Máx.)

Main Features of the IN.05.216.HO Hydraulic Pivot:

1) High-performance hydraulic pivot system

2) Supports doors up to 500 kg

3) Suitable for swing or hinged doors

4) Material: Stainless steel EN 1.4301 (AISI 304)

5) Finish: Satin, for an elegant touch

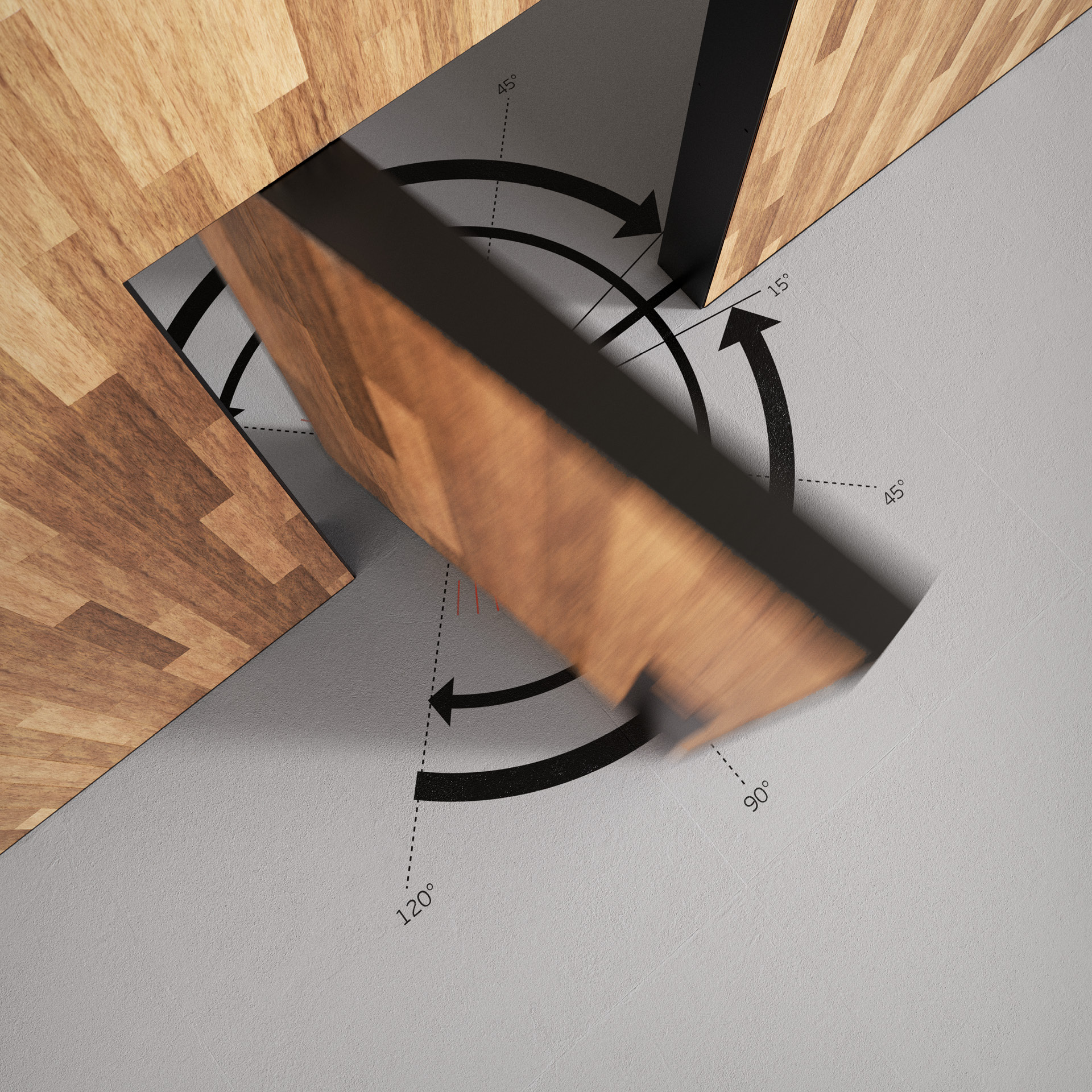

6) 90º stop for greater convenience

7) Bidirectional adjustment for precise adjustment

8) Hidden system, ensuring a clean and modern design

9) Recommended for spaces accessible to people with reduced mobility and children
