100 Edge Hydraulic Pivot

Hydraulic pivot

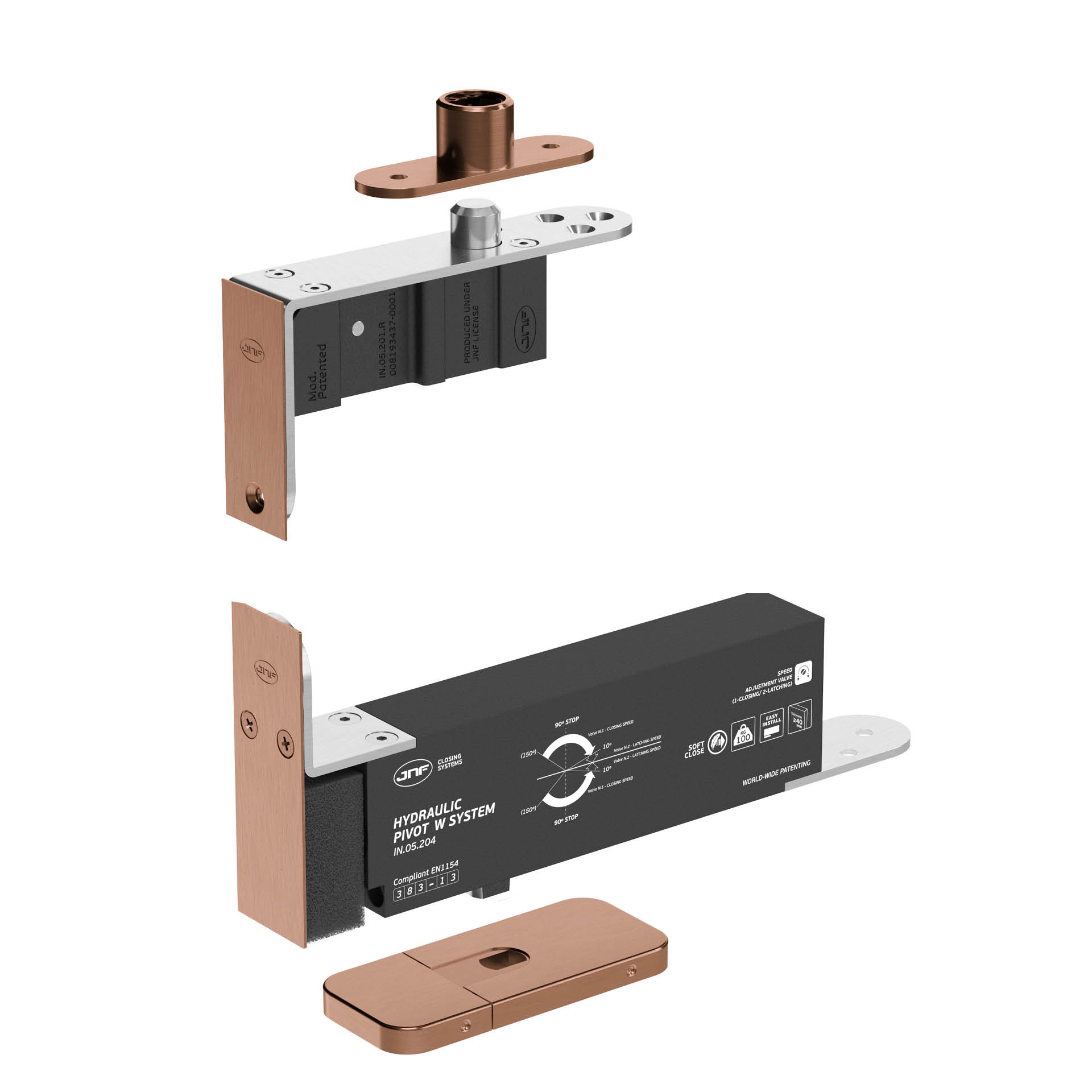

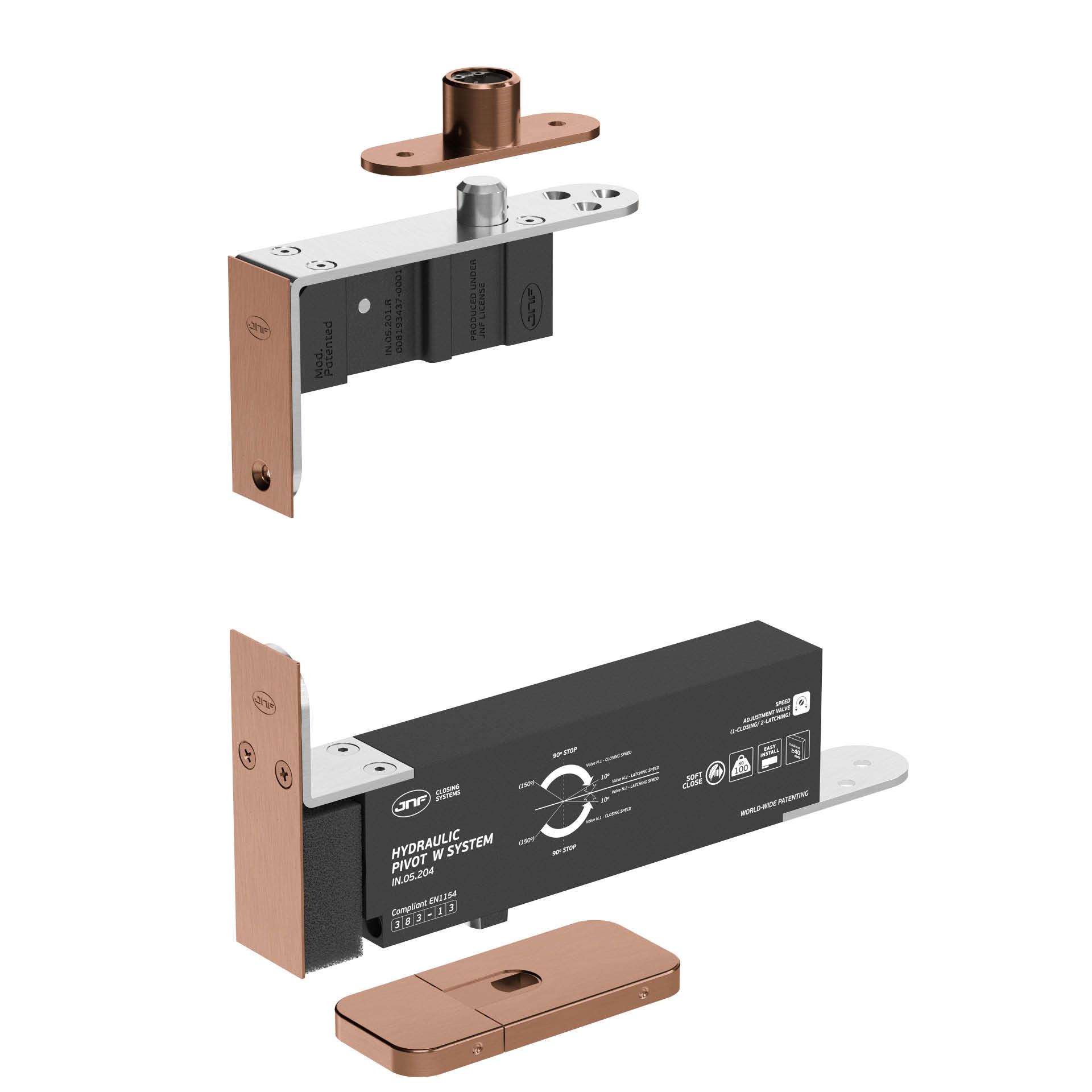

Name: Hydraulic pivot IN.05.224.EDGE.HO.TCO PVD Titanium Copper
Brand: JNF
SKU: IN.05.224.EDGE.HO.TCO
Availability: InStock

Version

Material: EN 1.4301 (AISI 304)

Add to project

You must log in to be able to add to your project.

Technical information
More Information

Series	100 Edge Hydraulic Pivot
Material	EN 1.4301 (AISI 304)
Version	IN.05.BH3 Base \| IN.05.UP4 Upper Pivot
Finishing	PVD Titanium Copper
Brand	JNF Architectural Hardware
Thickness	Min. door thickness: 40mm
Weight	100KG (Máx.)
Width	Max. door width: 1000mm
Product Features	+ 120º / - 120º, Soft Close, CAM, DDA, STOP 90º, PVD Titanium, Timber, Bottom Adjustment , Close Adjustment , Speed Adjustment , Metallic, Aluminium, POWDER Coated, Hinged Door, Bidirectional Door, 3 Power

100 EDGE PROFILE is a hydraulic pivot system designed for edge-mounted installation on doors up to 100kg, specifically suited for metal or aluminium profiles with reduced sections, as found in minimalist framing systems and precision technical structures.

With a fixed pivot axis at 80mm, it allows a clear opening of 1000mm, optimising accessibility in narrow or high-traffic areas where maximum clear passage is essential. Equipped with two independent hydraulic valves, it offers precise control of closing speed and final damping, adaptable to door weight and use case conditions.

Its 90o hold-open function in both directions ensures stable door positioning, ideal for residential, commercial, or institutional environments. The hydraulic CAM enables a smooth and progressive opening motion, even in narrow profile metal doors.

The bottom pivot provides two-axis adjustment (lateral and longitudinal), ensuring accurate leveling and alignment during installation. The top pivot is fixed, optimised for technical profile integration.
