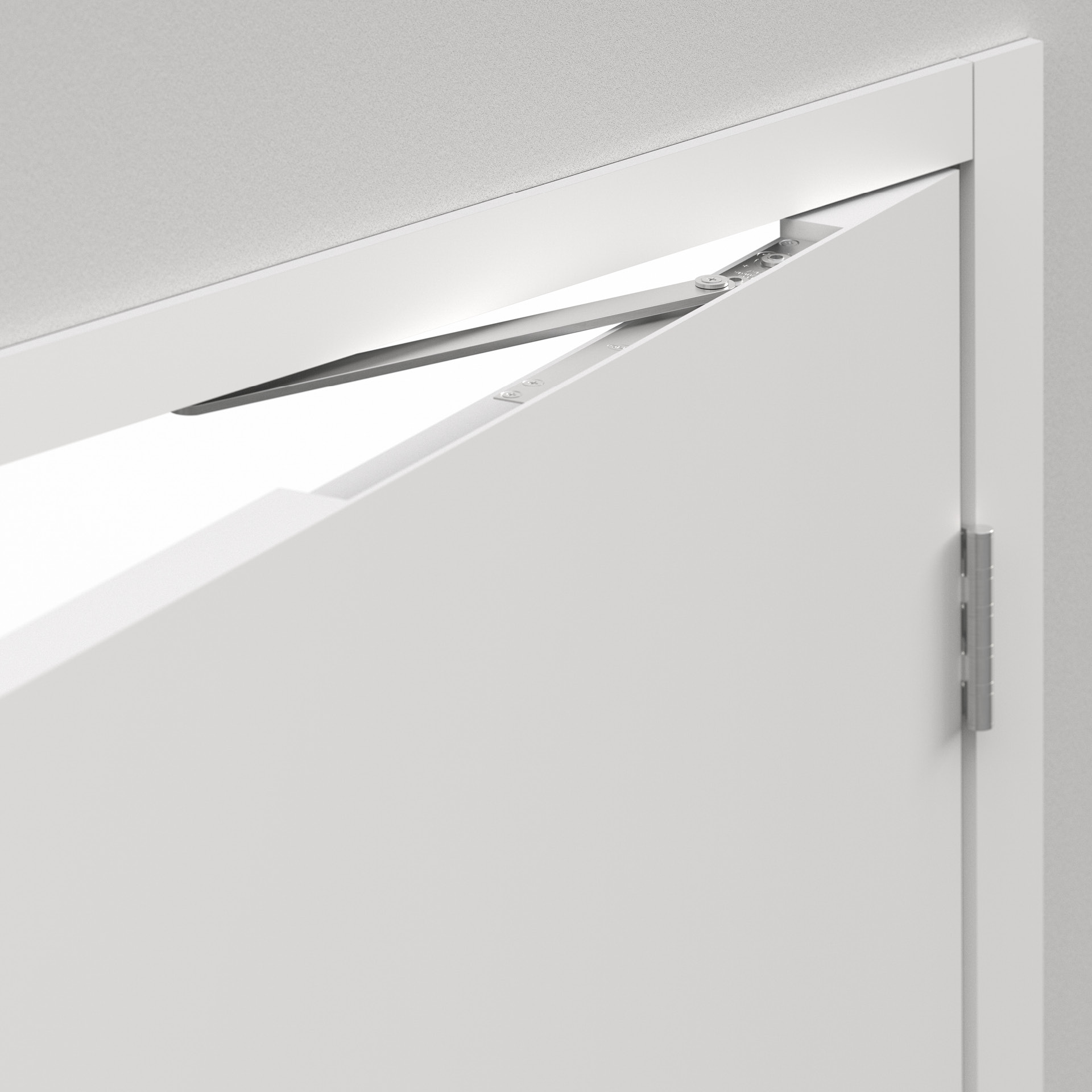

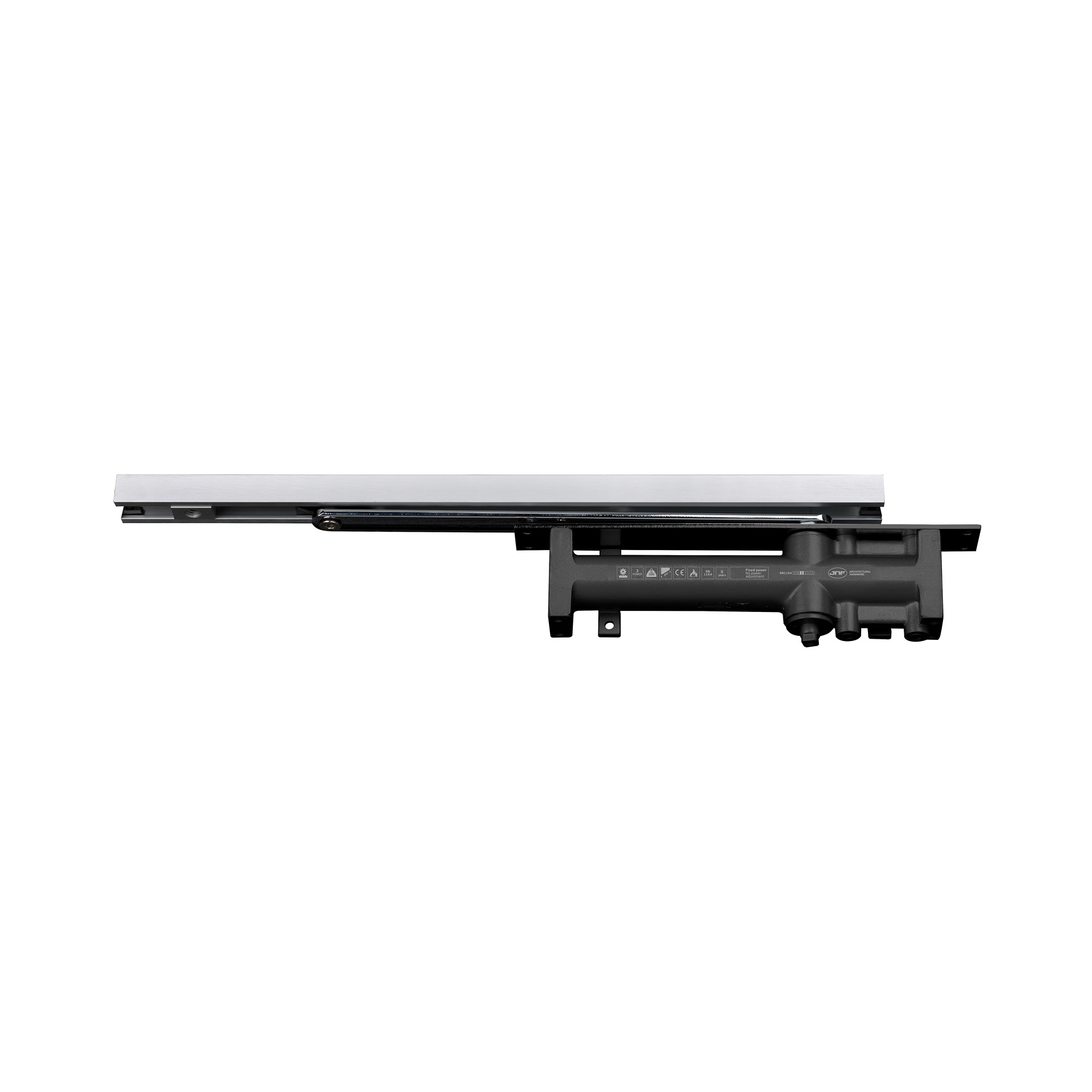

Concealed hydraulic overhead door closer to single action.
- Sliding arm;
- Power: 3;
- Maximum door width: 950mm;
- Maximum door weight: 100kg;
- Rack and pinion mechanism;
- Closing speed adjustable by valve;
- Latching speed adjustable by valve;
- Hold open system (removable);
- Opening angle 120°;
- Reversible door closer;
- Certified fireproof.
| Material | Aluminium |
|---|---|
| Finishing | Silver RAL 9006 |
| Brand | JNF Architectural Hardware |
| Weight | 100KG (Máx.) |
| Width | Max. door width: 950mm |
| Certifications | Fire Proof Certified, CE Marking, EN 1154 |
