IN.81.206.TCO

W 360º System

Hydraulic pivot

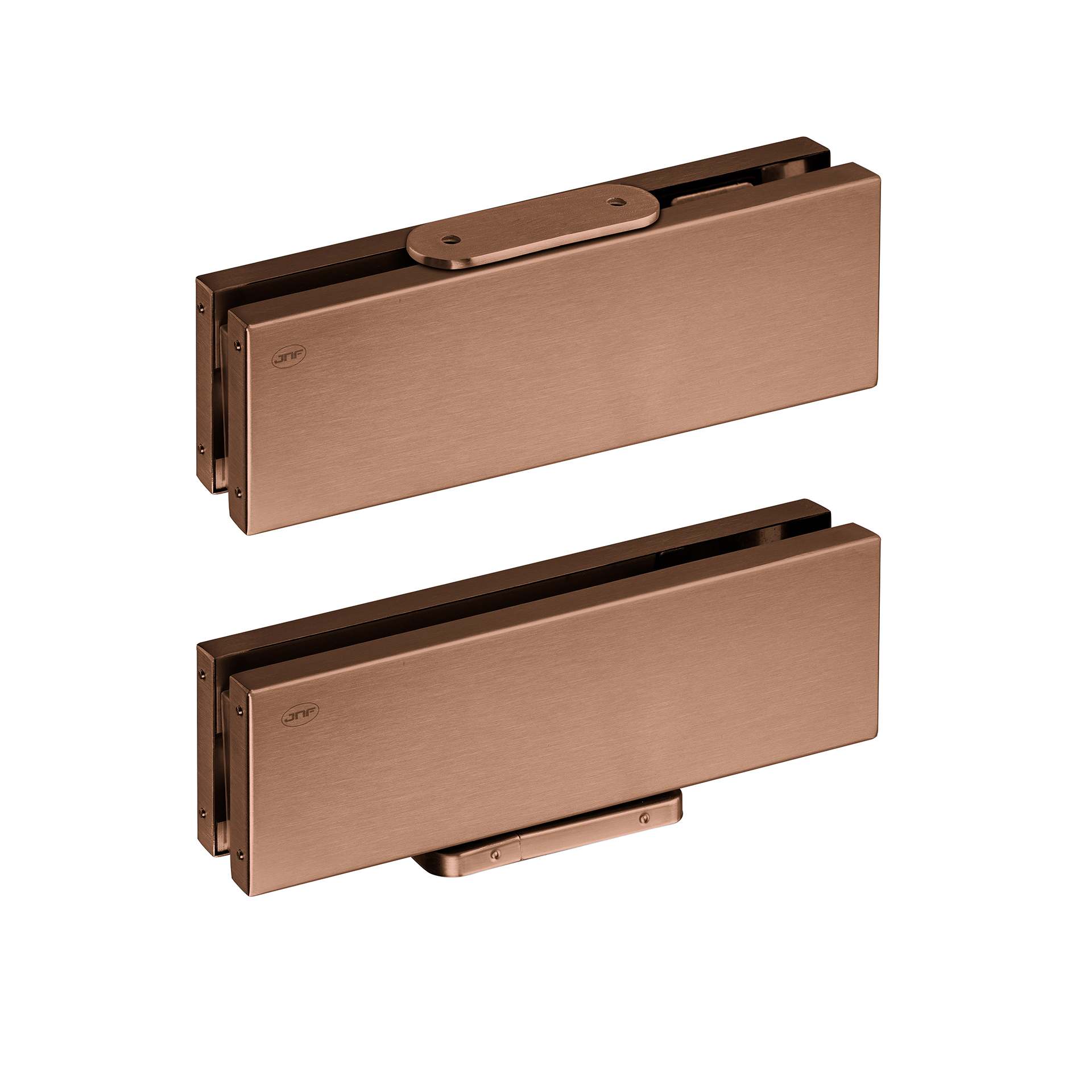

Name: Hydraulic pivot IN.81.206.TCO PVD Titanium Copper
Brand: JNF
SKU: IN.81.206.TCO
Availability: InStock

Hydraulic pivot set for glass doors.
• Closing speed with valve regulation.
• Application in the pavement surface without
masonry work
• Max. door width 2000mm.
• Max. weight up to 200kg.
• Glass thickness 10-13mm.
• International patent.
• System for door position adjustment
±3mm | ±3mm / 4º (consult dw*)

Material: EN 1.4301 (AISI 304)

Adicionar ao projeto

Tem de iniciar sessão para poder adicionar ao seu projeto.

Informação técnica
Mais Informações

Brand	JNF Architectural Hardware
Certifications	EN 1154
Finishing	PVD Titanium Copper
Material	EN 1.4301 (AISI 304)
Series	W 360º System
Thickness	Glass thickness: 10-13mm
Weight	200KG (Máx.)

This versatile series of hydraulic pivots for glass doors is designed to adapt to almost any installation scenario. The innovative cam system, combined with hydraulic technology and robust springs, ensures effortless door opening while delivering precise and controlled closing, even in outdoor applications.

Crafted with stainless steel covers and available in premium PVD titanium finishes, these pivots seamlessly complement any type of decor, offering both durability and style for modern architectural designs.
